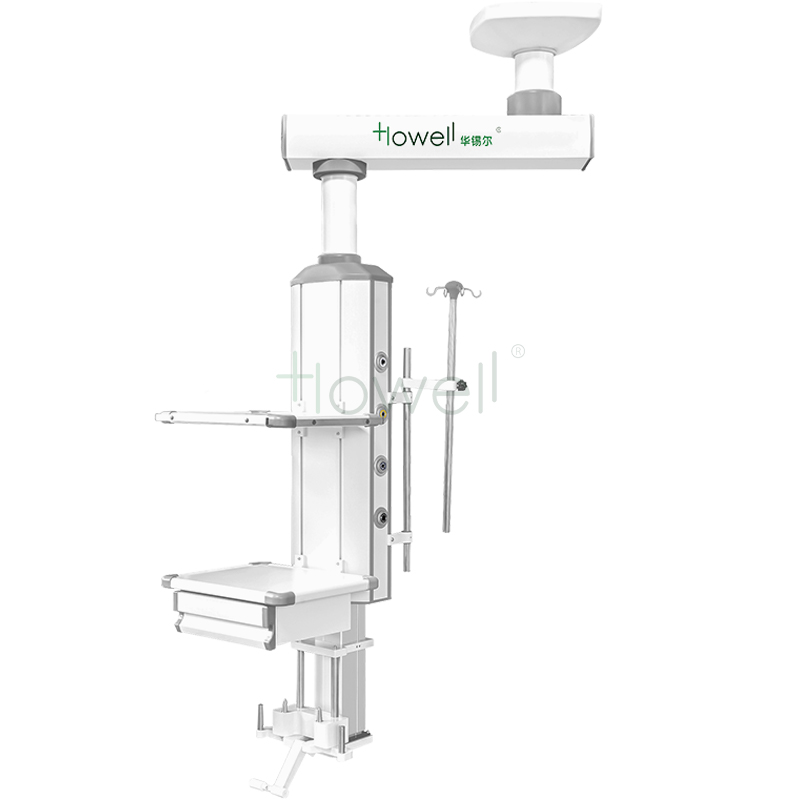

Motorized Single Arm Anesthesia Pendant HE-K-M5
1. Anesthesia Motorized Surgical Pendant The horizontal rotation Angle is between 0 and 340 degrees.
2. The terminal box can carry a maximum weight of 120 kg.
3. The gas supply system consists of two oxygen interfaces, two suction interfaces, one air interface, one nitrous oxide interface and one exhaust interface.
4. The standard power supply is equipped with 8 sockets, each socket has three sockets.
5. The total number of equipment pallets is 26.
6. An infusion rod device is included in the kit.
The main components of Ceiling Anesthesia Pendant include the top seat, the transverse arm, the box body, the seat that can be raised or lowered, the device placement tray, the medical respiratory system, and the electrical components. The transverse boom, case and instrument tray can rotate 340 degrees within a specified radius, while the rotating brake ensures accurate positioning, flexibility and ease of operation.
The box can provide medical gas interface, power interface and network connection when working with medical equipment such as anesthesia machine, monitoring equipment and high-frequency electrical cutting equipment.
