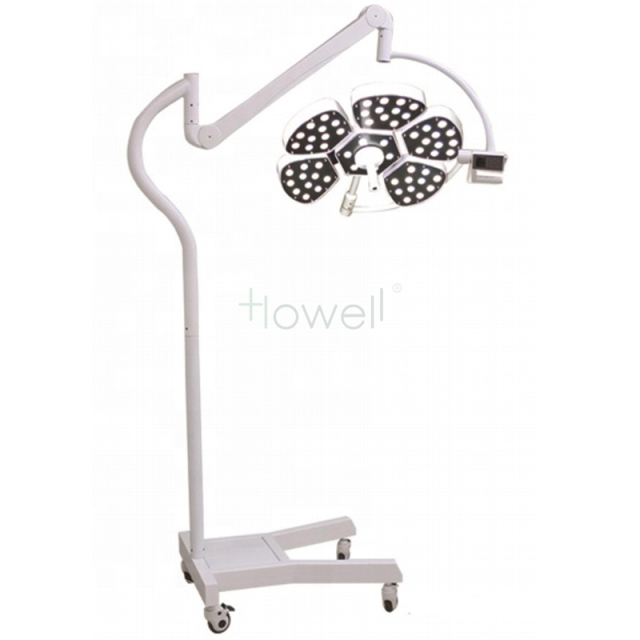

  • Portable Operating Light
  • Portable Operating Room Light
  • Portable Operating Light
  • Portable Operating Room Light

LED Mobile surgical Light

No.HE-(L5/L3)Mobile

Description

LED Mobile surgical Light HE-L5/L3(mobile)

The Mobile Surgical LED Light we are proud of has adopted a revolutionary design concept, equipped with octagonal alloy rotating arm, this unique design incorporates imported high-end boom module. Unprecedented balance stability is ensured through a system of gimbal joints with more than five degrees of freedom, each cantilever is exquisitely-constructed and equipped with three or more 360-degree rotating contacts, enabling no dead Angle adjustment in any direction.

The lightweight construction of the luminaire is not only easy to handle, but also guarantees the highest accuracy of positioning, even in the widest range of activities, also provides a wealth of adjustment possibilities. The specially integrated anti-fatigue properties and safety grip design allow the user to easily rearrange the lighting position even after prolonged operation.
mobile operating theatre light
The luminaire is designed according to the best optical principles and integrates multi-point light source technology, which significantly improves the comprehensiveness and consistency of lighting. Flawless shadowless lighting can be maintained even if the surgical area is obscured. With a rotating diameter of at least 182 cm, the lamps stand upright on the ground to flexibly adapt to the lighting needs of various angles, and their lightweight construction design allows for quick operation and accurate placement, while meeting diverse adjustment needs.

The outer body of the lamp is made of durable ABS material to ensure long-term use. The centrally located detachable handle is designed for quick adjustment and firm locking, and can withstand high-temperature disinfection processes up to 134°C to meet the stringent hygiene requirements of the medical environment.


Model HE-L5 (mobile) HE-L3 (mobile)
Illumination (adjustable) 40000-180000Lux 30000-160000Lux
Number of bulbs 61 pcs 39 pcs
Bulb type  LED bulb LED bulb
Average lamp life  ≥80000h ≥80000h
Color temperature (adjustable)  3700K-5000K  3700K-5000K
Color rendering index (adjustable)  85%~98%  85%~98%
Light Beam Depth  50-180cm  50-180cm
Spot diameter  160-280mm  160-280mm
Light Adjust Range  1%-100%  1%-100%
Consumed power 65 40
Temp Rise (doctor head)  <1 ° C  <1 ° C
Input voltage  AC100-240v 50/60HZ  AC100-240v 50/60HZ

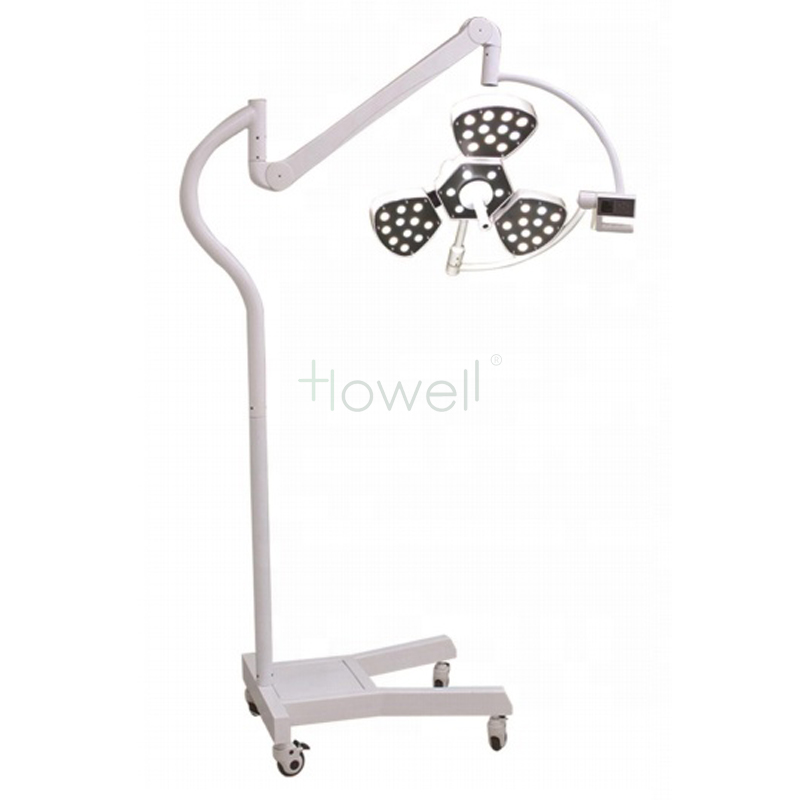

operating lamp mobile
